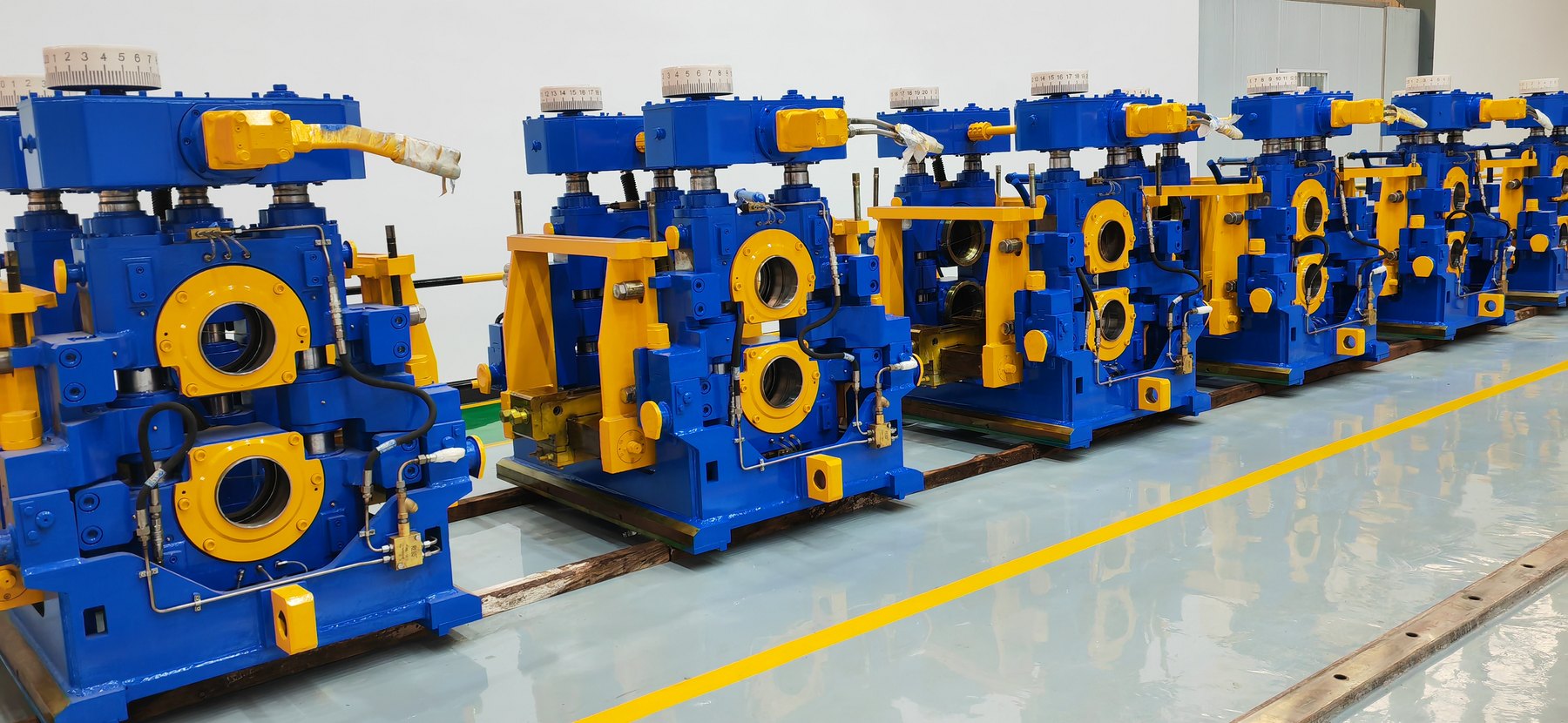

Short stress mill series
350 to 850 model range, maximum rolling force 6400kN and maximum rolling torque 1200kN·m.
Product Center
Equipment systems for metallurgical production lines
Products are organized by production line, with equipment scope and key equipment lists for casting, rebar, wire rod, section and plate lines.
Production Line

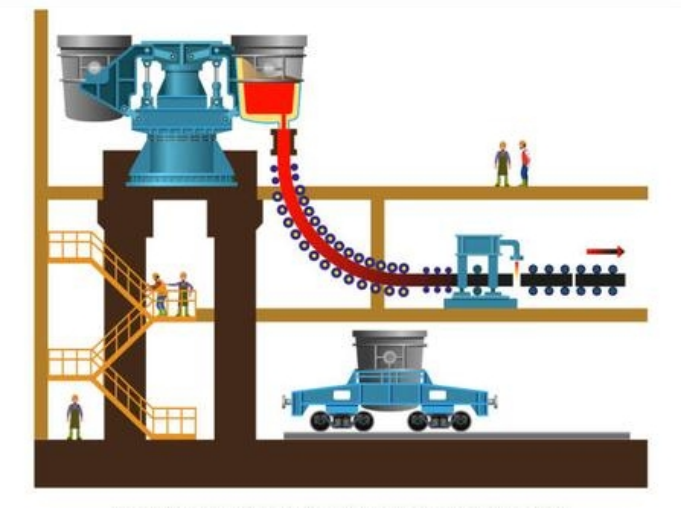

Casting equipment and segment support
For caster renewal, straightening equipment, slab caster segments and roller table requirements.
Equipment Scope
Key Equipment List
- Continuous Casting Machines
- Straighteners
- Slab Caster Segment
- Roller table - all kinds
Production Line

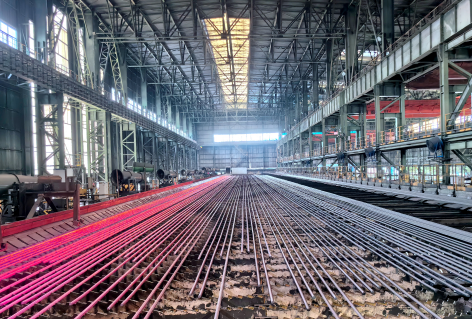

Rebar and high-speed bar line equipment
Covering blooming, rolling, high-speed delivery, shearing, cooling beds and collection equipment.
Equipment Scope
Key Equipment List
- 3-High Reversing Blooming Mills
- 2-High Rolling Mills: short stress mills, housing mills and pre-tensioned mills
- Roller Tables - all kinds
- Pinch Rolls
- Loopers
- Flying Shears - 1#, 2#, 3#
- Cold Shears
- High Speed Delivery Devices
- Cooling Beds
- Collections
Production Line
Wire rod rolling, air cooling and coil collection
Equipment for rolling rhythm, temperature control and coil collection.
Equipment Scope
Key Equipment List
- 3-High Reversing Blooming Mills
- 2-High Rolling Mills: short stress mills, housing mills and pre-tensioned mills
- Roller Tables - all kinds
- Pinch Rolls
- Loopers
- Flying Shears - 1#, 2#, 3#
- Air Cooling Lines
- Coil Collection Station
Production Line
Universal mills and standard 2-high mills
For H-beams, I-beams, U-beams and angle steels.
Equipment Scope
Key Equipment List
- Universal Mills: 4-high, 2 horizontal + 2 vertical
- H-beams
- I-beams
- U-beams
- Standard Mills: 2-high
- Angle steels
Production Line
Plate conveying, cooling and collection equipment
Covering roller tables, ultra-fast cooling, cooling beds, stacking, shearing, centering and transfer equipment.
Equipment Scope
Key Equipment List
- Roller Tables - all kinds, up to 5600mm
- Ultra-Fast Cooling, collaborating with China North-Eastern University RAL Lab
- Cooling Bed
- Stacking Machine
- Hot Crop Shear
- Magnetic Centering Device
- Plate Transfer Car
Highlighted Equipment
Representative single machines
Typical machines and components used across production lines or supplied for upgrading projects.

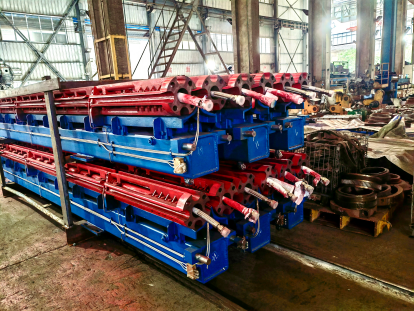

High-speed feeding system
For feeding, separating, switching and guiding in high-speed bar lines.

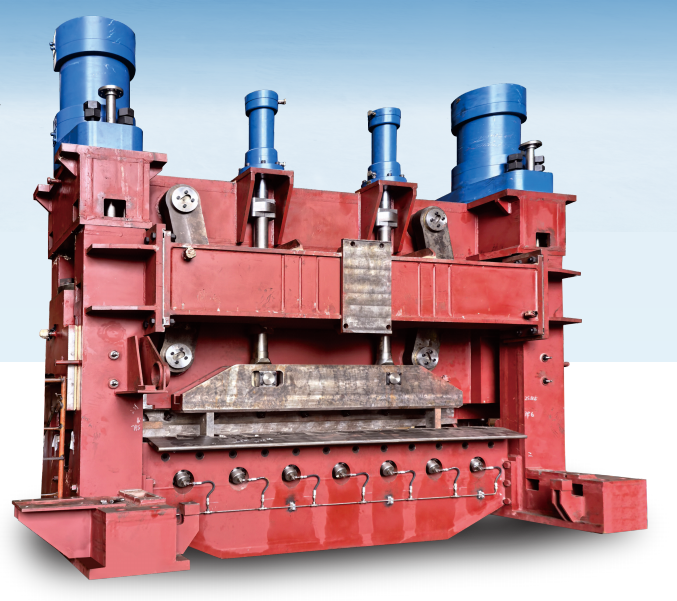

Hot crop shear
Custom shearing equipment for plate, bar and wire rod lines.

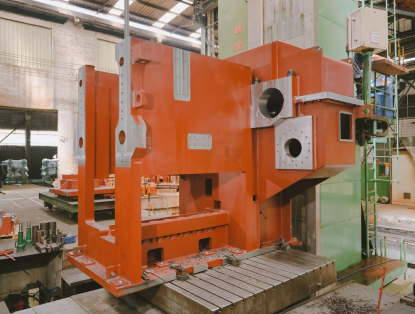

Cold shears and housings
For cold shearing, sizing and collection areas.

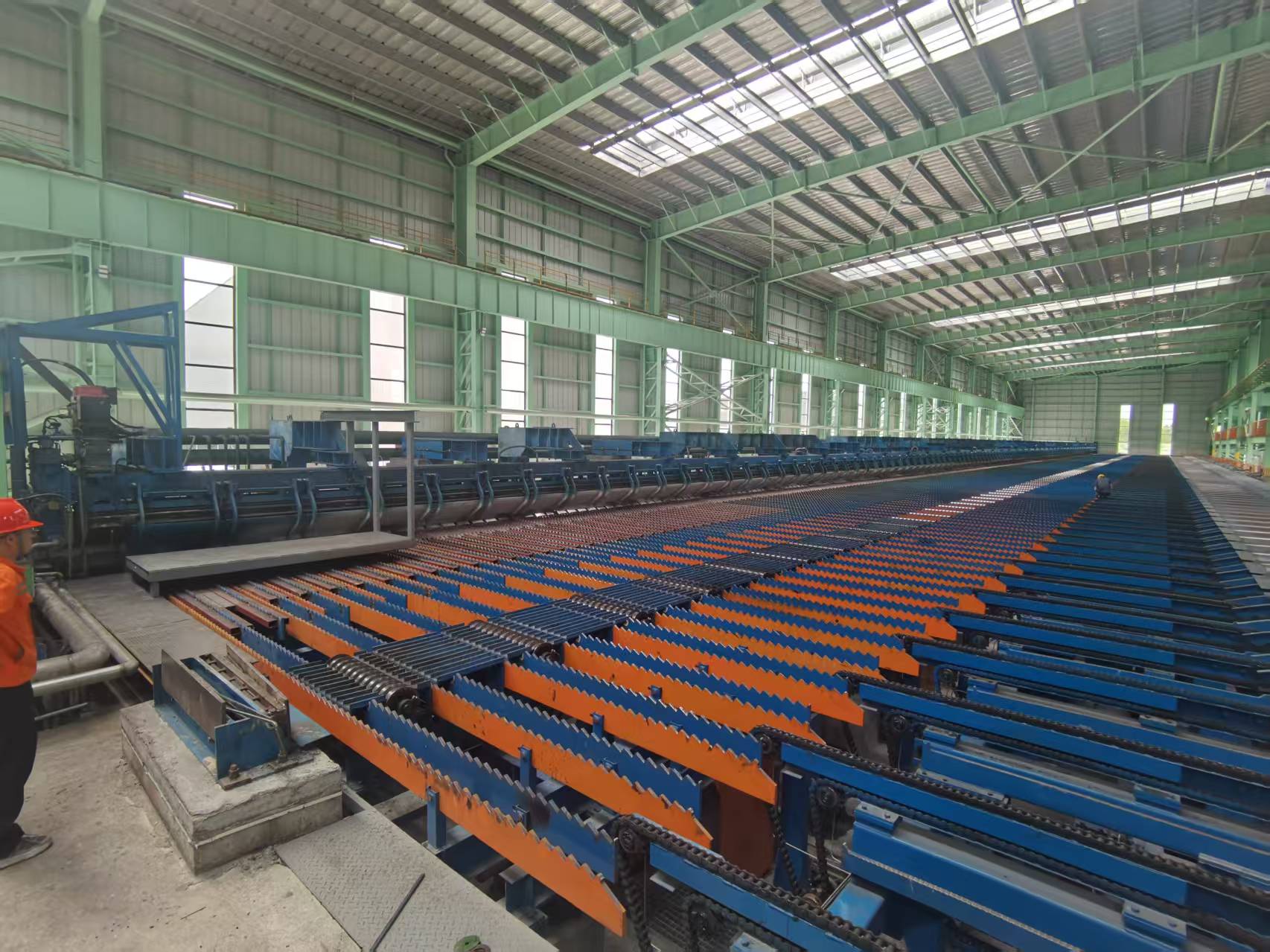

Cooling beds
For cooling, conveying and rhythm coordination after rolling.
Casting segments
For casting equipment renewal, spare parts and custom interfaces.
Inquiry
Submit line or equipment requirements
Please share product specifications, line rhythm, site boundaries and equipment list.
